Place of Origin : Henan, China
Condition : New
Machine Type : Automatic
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Marketing Type : New Product 2019
Warranty of core components : 1 Year
Core Components : Engine, Motor
Brand Name : RECYCLE
Voltage : 220V/380V
Power : 220KW~700KW
Dimension(L*W*H) : As Designed
Warranty : 1 Year
Key Selling Points : Long Service Life
Showroom Location : Egypt, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, India, Mexico, Thailand, South Korea, Chile, UAE, Algeria, Sri Lanka, Morocco
Applicable Industries : Manufacturing Plant, Energy & Mining
Weight (KG) : 7000
Product name : Automatic Copper Aluminum Rod Upward Continuous Casting Machine
Color : As Requirements Copper Aluminum Rod Upward Continuous Casting Machine
Raw material : Scrap Copper/Cathode Copper
Rod Casting Speed : 0~2.8m/min
Diameter : 8mm to 30mm Copper Aluminum Rod Upward Continuous Casting Machine
Supplier : China Automatic Copper Aluminum Rod Upward Continuous Casting Machine
Application : Oxygen-free Copper Rod Production
Output : Electric Wire
Usage : Copper Wire Making Equipment
Feature : High Efficency Copper Aluminum Rod Upward Continuous Casting Machine
Packaging Details :
1). Name: Automatic Copper Aluminum Rod Upward Continuous Casting Machine
2). Packaging Details: Standard Packaging Or As Customers' Requirements Packaging Automatic Copper Aluminum Rod Upward Continuous Casting Machine
Port : Qingdao/Shanghai/Tianjin Port
Supply Ability : 20 Set/Sets per Year
Price : $3,000.00 - $200,000.00/sets






Raw Materials | The raw materials should meet the requirements of GB/T467-2010 cathode copper No.1 standard copper Cu-CATH-2 |
Battery Cover Remover | 2200*2000*1300 mm |
Copper Rod | Copper rod technical indicators should meet the GB/T3952-2008 standard |
Density | ~8.9Kg/dm3 |
Tensile Strength | >170N/mm2 |
Soft Electrical Conductivity | >100% IACS ( 2m2n Flexble Wire ) |
Soft Electrical Resistivity | >0.15328Ωg/m2 |
Elongation | >37% |
Oxygen Content | ≤20ppm |




Capacity | 3000 - 12000T/Year |
Furnace Number | 2 Melting Furnace+1 Heat Preservation Furnace |
Casting Rod Number | 24 Pcs |
Casting Rob Diameter | φ8mm ~ φ20mm |
Upward Speed | 6.0 ~ 2800mm/min |
Upward Circular Pitch | 3-6mm ( Adjustable ) |
Traction Frequency | 0 ~ 800 times/time |
Traction Way | Servo Motor Tranction |
Winding Specification | φ1000xφ1550x800 ( mm ) |
Voltage | 380V, 50Hz, 3Phase |
Melting Copper Speed | 1550 Kg/H |
Maximum Operating Power | ≤560 Kw |
Power Consumption | ≤330 Kwh/T |





|
|

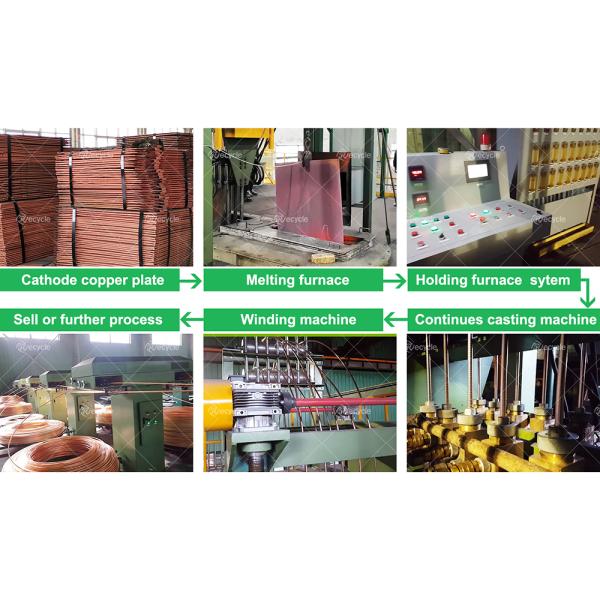

Automatic Copper Aluminum Rod Upward Continuous Casting Machine Images |
